Hydraulic Accessories

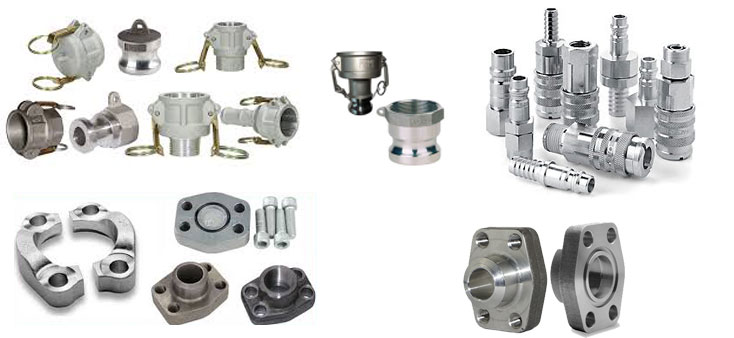

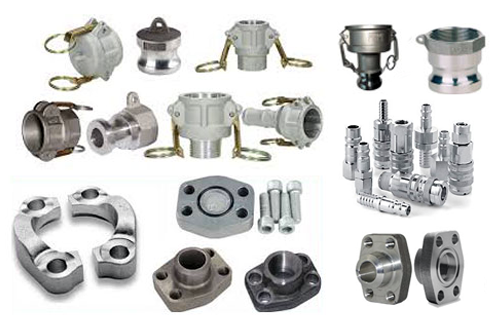

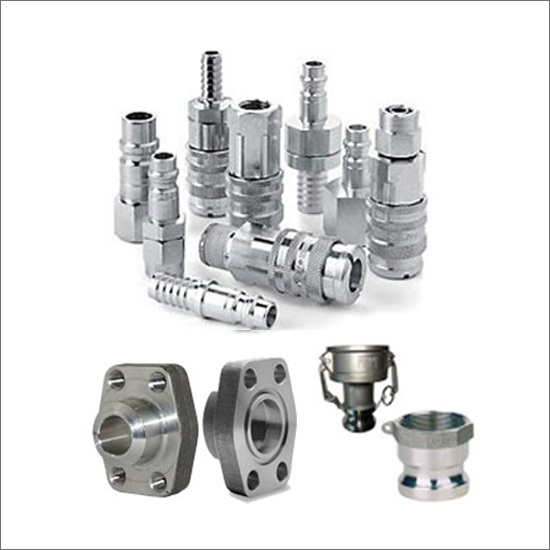

Hydraulic Accessories, Hydraulic Fittings

We supply a wide range of cam lock couplings, which is widely used for loading and unloading of tankers for water, petrol and chemical. Widely used in ships and atomic energy plants, our finds application in.
• Internationally accepted design, for Fire Fighting hose connections
• For large vacuum or suction lines
• Flow of powders in chemical, pharmaceutical & Fertilizer industries
• Cooling water connections for paper rolling mills
• Unloading from large storage tanks for paints or chemicals

Quick Release Couplings
Quick couplings are devices which permit easy, immediate connections and separation of fluid and pneumatic lines. When installed in a system quick couplings saves time by eliminating the necessity to close valves, bleed the system, recharge with fluid and purge entrapped air whenever an accessory is being replaced.

Material of Contractions 1) Carbon Steel 2) Stainless Steel 3) Brass.

SAE Flanges
We are engaged in offering a wide range of flanges & union they are designed from high grade material and are suitable for various industrial applications. They are fabricated in the following forms.


Split Flanges -
They are manufactured in as per the mounting dimensions ranges up to SAE J518 specifications and code 61 or code 62, and ISO 6162. They have a socket weld NPTF and SAE straight thread connections and are available as reducers.

Features:
• MOC: Low Carbon Steel, S.S.304 & S.S.316 Forged or Plate
• Available with either inch or metric threads.
• Fittings are available with straight sizes: 1/2" NB to 6"NB
• Used for pipe and tubing

Union Flanges-
We offer a range of union flange that are used in many industries and are manufactured from high grade raw material.
• Easy to install
• Efficient with bolt-hole alignment
• Versatile can be used under or above ground; usable with abrasive materials
• Corrosion resistant
• Used for flange
• Reliable based on proven design principles
• Prevents delays during assembly

Socket weld Flanges-
Socket Weld Flanges are similar to slip-on flanges, however, socket welds have an internal recess on the inside diameter to allow for a smoother flow of the process fluid. The positive of this is that is creates a smooth bore with the proper welding and grinding. They are durable and are available with varied specifications.

Threaded Flanges.-
Threaded Flanges offered by us are used for extraordinary circumstances and can be place with the pipe without welding. Sometimes a seal weld is also used in conjunction along with the threaded connections. They are also used for high pressure and have a diverse application area.
