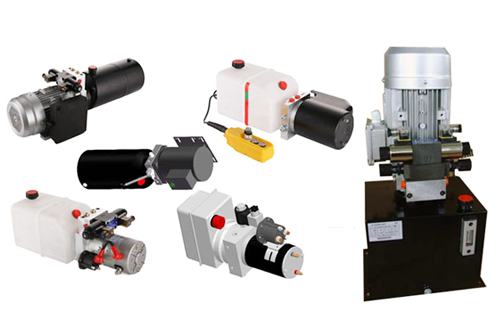

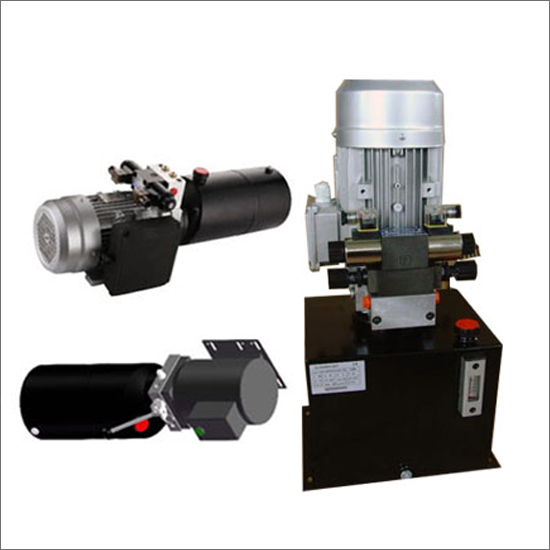

Hydraulic Power Packs Unit

We provide hydraulic power packs with 240V, 3 phase hydraulic power packs, 240V hydraulic power packs, 110V hydraulic power packs with centre manifold blocks that hold hydraulic cartridges, and valves connected to an AC motor and compact sized gear pumps. Our AC power packs supply flow from 3L/M up to 25LPM, and pressure from 40 bars to 250 bars

AC Power Packs Features
• Small and Compact Power Packs Outside dimensions size
• For mobile and industrial applications
• Vertical and horizontal mounting with 2 Mounting Holes on Manifold
• Stacked hydraulic manifold block for CETOP 03 valve available
• High Pressure Gear Pump Option
• B14 Flanges AC motor available for AC power packs

DC hydraulic power pack mountings are horizontal or vertical.
Normally we set hydraulic relief valves at 160 bars, but hydraulic relief valves are adjustable from 50 to 230 bars, as standard for each mini hydraulic power pack.

DC hydraulic power pack flow range is from 3L/min up to 15L/max.

The standard size for the hydraulic valve manifold oil port's thread size is 3/8" BSPP.

Electric control system: two buttons remote with 4 meters cables. We also offer wireless remote control pendants. Part number: WRCP12. This wireless remote can control a DC hydraulic power pack 100 meters away. Here are the hydraulic power pack wiring diagram if you want learn more about how to wire DC Hydraulic Power Pack with Battery for your mobile hydraulics equipment.

A single acting DC hydraulic power pack is suitable for all kinds of single acting hydraulic applications, such as trailer tipping, power up /gravity down lift, mobile hydraulics, tipper truck, and tailgate lift.

This mini power pack dimensions are very small and compact, so, we also call them small hydraulic power packs or small hydraulic power units. They offer high pressure with low flow for single action hydraulic systems or double acting small hydraulic cylinders.

Our 12V DC hydraulic power packs and 24V DC hydraulic power packs are used for single acting hydraulic cylinders, they increase cylinder power that decreases with gravity.

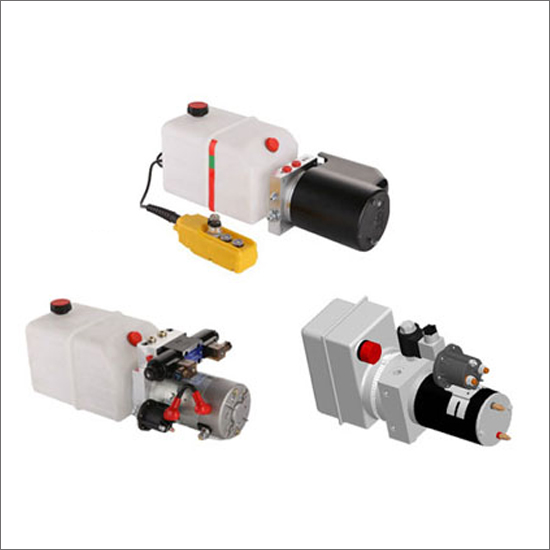

Mini Hydraulic Power Pack

Our 12V DC hydraulic power packs and 24V DC hydraulic power packs are used for single acting hydraulic cylinders, they increase cylinder power that decreases with gravity. First, the motor runs and pressure oil come from the hydraulic gear pumps through our standard aluminium central manifold to single acting hydraulic cylinders. When the motor stops, the cartridge check valve and 2-way hydraulic valve with normally closed functions will hold pressure for the cylinder. And then, remote operate solenoid valve release hydraulic pressure from system, to make single acting cylinder gravity down to closed.

A single acting hydraulic cylinder can be used for many different applications, such as a small mobile lift, a vehicle lift.
All of our mini power packs have single acting hydraulic schematics, 2 way cartridge solenoid valves with normally closed/open, and check valves for holding cylinder pressure to make sure the cylinder doesn't drop.

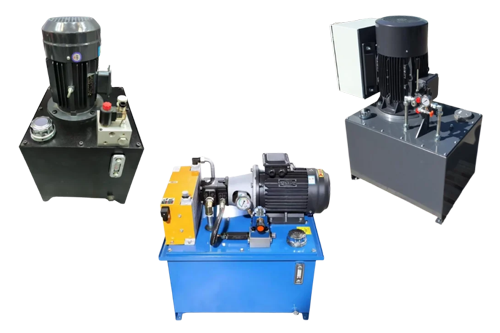

Custmise Build Powerpack (AC & DC)

We are the Manufacturer of Hydraulic Power Pack in Various Applications, like Hydraulic Presses, Clamping Fixtures, Rapid Feed Application, Lifts, Car Parking Applications, Custom Designs Ac & DC Voltage. We are Designing and Manufacturing Custom Built Hydraulic Power Pack

Custmise Build Powerpack (AC & DC)
Range
Oil Reservoir Size	20 to 1,000 Liters Capacity
Power	0.5 HP to 50 HP
Control	Manual to PLC And Electronics

Silent Features

• Energy Efficient Design
• Compact Layout, Low Noise Levels
• User Friendly Arrangements
• Ensuring Low Pressure Drop to Reduce The Heat Losses and Piping
• Engineering To Provide Right Solution to Customer Without Affecting Targeted Performance

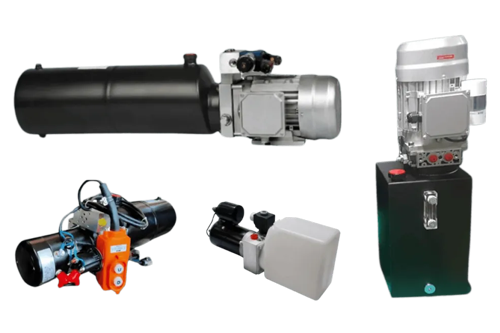

AC Powerpack

The AC Hydraulic Power Pack is a crucial piece of equipment that various industries and organizations depend on to deliver versatile hydraulic power for use in modern applications. These power packs harness AC electrical energy to amplify hydraulic pressure, enabling the seamless operation of hydraulic machinery and equipment, which in turn leads to impressive performance and results.

Power packs can be mounted either horizontally or vertically, based on application needs.

AC Powerpack

Oil port thread	BSPP1/4” or BSPP3/8”	Working Pressure	40bar up to 250bar, normally setting @180bar
Remote control	As customer request.	Tank/Reservoir	From 3L up to 100L
Motor	AC110V/220V/240v/380v/415v .50/60Hz, up to 7.5Kw	Flow L/M	From 3L up to 25L
Gear Pump	From 0.75cc/r to 8.0cc/r	Mounting	Horizontal/vertical

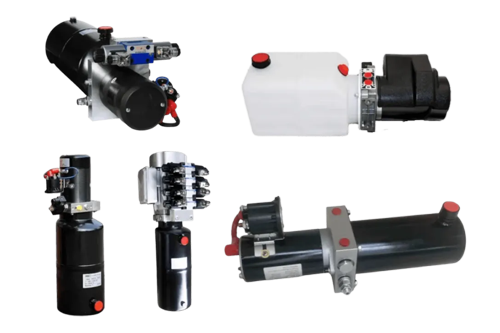

DC Powerpack

The DC Hydraulic Power Pack is a compact and portable power unit that operates on direct current (DC). It is designed to power various machinery, including construction equipment and electric forklifts, particularly in agricultural applications. Ideal for situations where alternating current (AC) is unavailable, this power pack can be easily integrated into the compact structures of different machines, providing efficient and immediate energy when needed.

DC Powerpack
Remote Control	Cable or wireless remote	Working Pressure	50-250bar,setting @180bar
Motor	DC12V /DC24V	Tank/Reservoir	From 3L up to 16L
Gear Pump	From 0.75cc up to 8cc/r	Flow L/M	From 3LPM to 25LPM
Voltage	DC12V or DC24V	Mounting	Horizontal/ Vertic

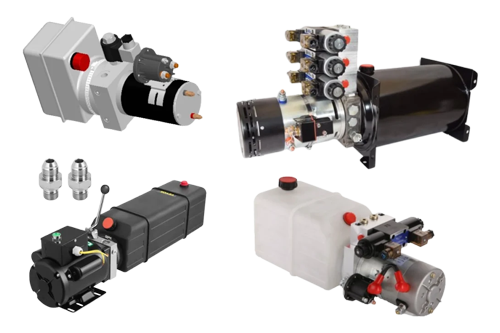

MINI Powerpack

Also known as small hydraulic power units, are compact, lightweight, and highly efficient hydraulic systems. These units are specifically designed for use in mobile hydraulics and machinery applications, where space and weight optimization are critical

MINI Powerpack
Voltage Options	Performance Specs	Components
240V, 3-phase hydraulic power packs	Flow rates from 3 L/min to 25 L/min	Centre manifold blocks that hold hydraulic cartridges
240V single-phase hydraulic power packs	Pressure ranges from 40 bars to 250 bars	Valves connected to AC motors
110V hydraulic power packs		Compact-sized gear pumps

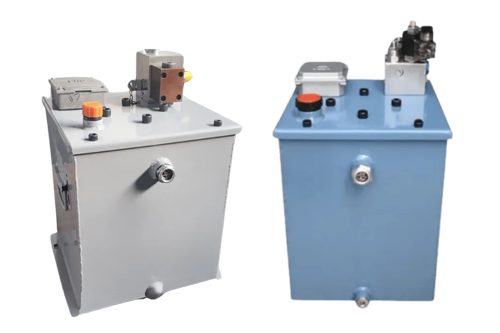

Submersible Powerpack

Specifically designed for car parking lifts, providing reliable hydraulic power for the smooth, precise lifting and lowering of vehicles in industrial and automated parking systems.

Submersible Powerpack
Usage/Application	Industrial	Material	Mild Steel
Power	AC	Motor Power	3HP
Voltage	230/420V	Flow Range	81pm
