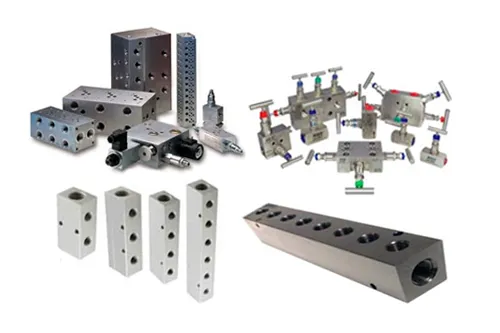

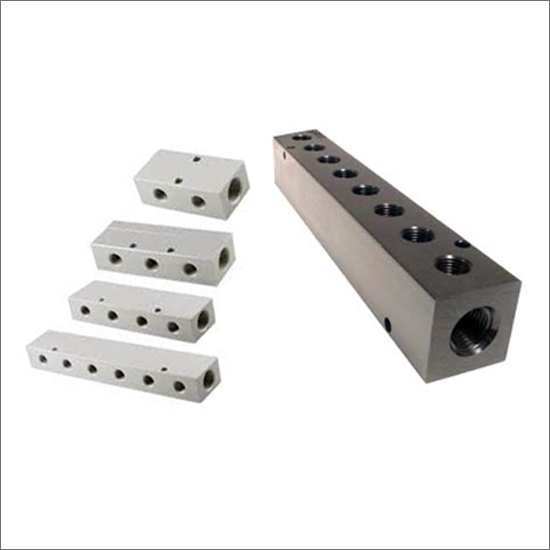

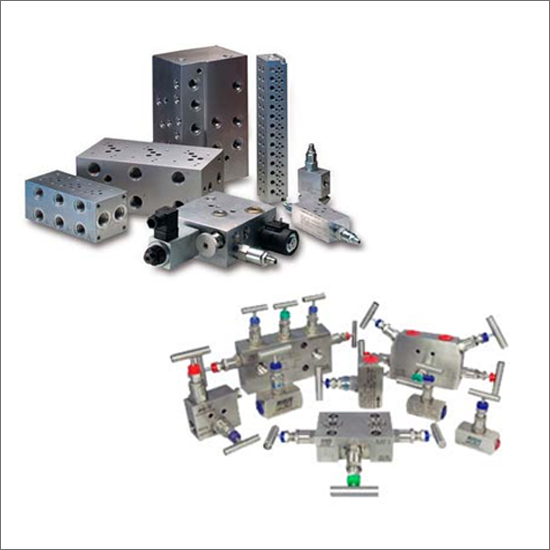

Manifold Block Mounting Ball Valves

Manifold Block Mounting Ball Valves

Manifold valves provide a more compact, reliable and cost-effective solution than employing externally mounted valves. Additionally, these manifold valves employ fewer connections, resulting in a reduced number of leak points. We also offer custom designed and manufactured manifold systems.

• Height closed (standard and HP) = 47mm (1.85") Height open (standard and HP) = 50.3mm (X.00")
• Number of turns open/close - 3.5
• Aluminum/ Stainless steel construction
• Maximum standard pressure up to 6,000 psig (414 barge)
• Maximum optional pressure (limited to HP suffix see page 1X & 19) up to 10,000 psig (689 barge)
• Temperature rating -54C to +538C (-65F to +1000F)
• PTFE standard gland packing (Graph oil optional)
• Maximum temperature PTFE X 60C (500F)
• Maximum temperature Graph oil 538C (1000F)
