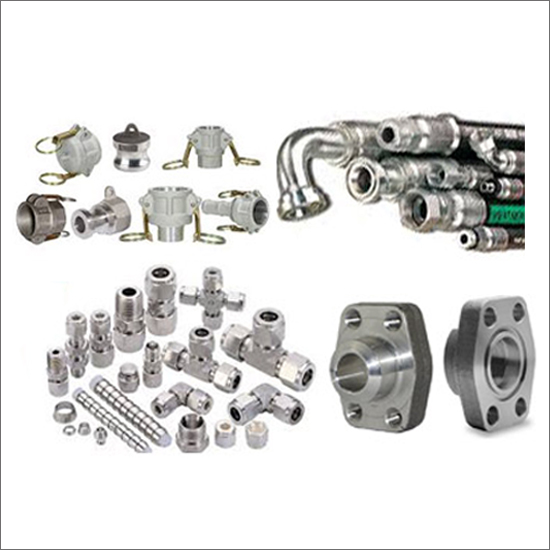

Hydraulic Fittings |
Single Ferrule fittings are three piece designs comprising of a Socket having a conical seat, a hardened Progressive Ring and a Nut. When the Nut is progressively tightened it makes the Ring to move on to the tube, which subsequently bites into the pipe, thereby forming a visible collar of material in front of it.
To manufacture such a wide range of Fittings trouble free and leak proof couplings and adaptors, not only the help of standards like DIN: 2353, ISO: 8434 -1, IS: 8805, JIC, SAE, CSN, TGL etc. is taken but many designs like ERMETO, EO, PARKER, IMPERIAL, SWAGELOK, etc. are also being followed.
Threads like ISO 6149 METRIC (MM), METRIC TAPER (MT), BSPP, BSPT, NPT, UN, UNF & SAE straight are used on nut ends and the plug ends.
Various finish like Trivalent Blue Passivity Zinc Plating in regular and Blackening/Phosphates, Zink Yellow passivity being offered. Threaded ends are protected from dust and getting damage, by plastic end covers for a long and safe storage.
|
| |
 |
| |
Tube to Tube fittings
• Straight Union
• Union Elbow
• Reducing Union.
• Union Tee
• Union Cross
• Reducing Tee.
• Bulkhead Union
• Bulkhead Union Elbow. |
Tube to Female Port
• Male Stud Connector-BSP, Taper, Metric and NPT
• Male Stud Elbow-BSP, BSP Taper, Metric
• Male branch Tee
• Male Run Tee
Tube to Male Thread
• Female Connector-BSP, Metric. |
Other Fittings
• Male Female Adaptor
• Hex Nipple
• Dead Plug (closure plug)
• Union Elbow
• Reducing Union
• Union Tee
• Union Cross
• Reducing Tee.
• Bulkhead Union
• Bulkhead Union Elbow. |
Tube to Tube port. (Adjustable Fittings)
• Swivel Adjustable Elbow
• Swivel Adjustable Branch Tee
• Swivel Adjustable Run Tee
• Stand Pipe Adaptor
• Swivel union. |
Banjo Fittings
• Banjo Elbow
• High Pressure Banjo Elbow. |
|
|
| |

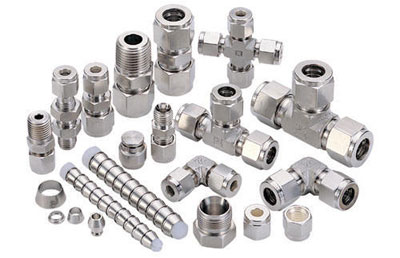

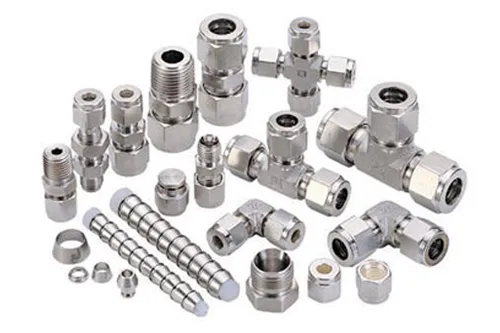

Double Ferrule Swagelok Type Fittings |
| Double ferrule fittings work on the proven principle of two ferrules swaging to the tube when tightened. As the nut is tightened the front ferrule swages on to the tube making a prominent leak-proof seal and the back ferrule makes a positive impression on the tube with the help of back cone of front ferrule hence making a strong hold on the tube. |
 |
| |
 |
| |

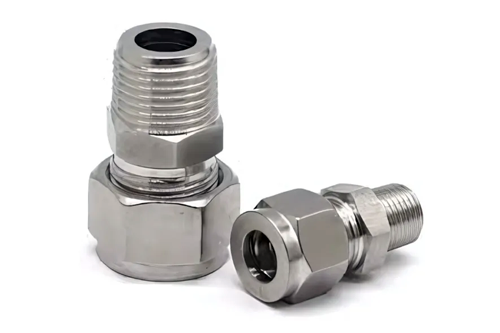

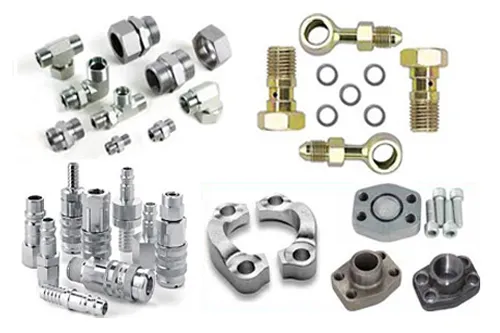

Single Ferrule Hydraulic Fittings & Double Ferrule Fittings
|
These fittings are designed with a single ferrule mechanism that securely grips the tubing, providing a reliable and leak-free connection. They are easy to install and maintain, making them ideal for various hydraulic applications. The streamlined design minimizes pressure drops, ensuring optimal flow performance.
|
|
 |
|
| |
|
|
|
|
| |
|
|
|
| |
Tube to Tube Fittings
|
The Tube to Tube Port is a crucial fitting for hydraulic systems, featuring a tube connection on one end and a female threaded port on the other. Made from robust materials, it offers durability and corrosion resistance, ensuring reliable performance under pressure. This component is essential for secure, leak-proof connections, enhancing the efficiency of hydraulic applications.
|
|
 |
|
| |
|
|
|
|
| |
|
|
|
| |

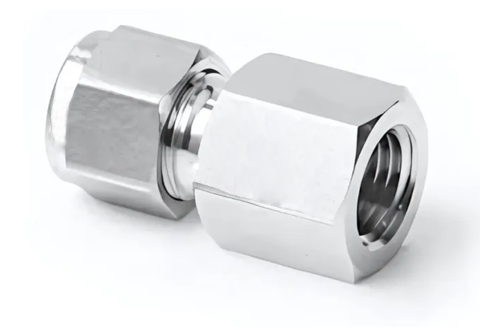

Tube to Female Port
|
The Tube to Female Port is a crucial fitting for hydraulic systems, featuring a tube connection on one end and a female threaded port on the other. Made from robust materials, it offers durability and corrosion resistance, ensuring reliable performance under pressure. This component is essential for secure, leak-proof connections, enhancing the efficiency of hydraulic applications.
|
|
 |
|
| |
|
|
|
|
| |
|
|
|
| |
Tube to Male Port
|
Tube-to-tube fittings are vital for connecting two tubes in hydraulic and pneumatic systems. They provide secure, leak-free joints that support efficient fluid flow and pressure maintenance. Made from durable materials, these fittings are available in various sizes and configurations, ensuring compatibility with different tubing types. Their straightforward installation and dependable performance make them ideal for enhancing system efficiency.
|
|
 |
|
| |
|
|
|
|
| |
|
|
|
| |
Banjo Fitting
|
A banjo fitting connects fluid lines securely and flexibly, ideal for high-pressure applications. It features a bolt and a round fitting that allows fluid to pass through while being sealed by washers. This design prevents twisting, which protects hoses and facilitates installation. Commonly used in hydraulic brakes, fuel lines, and turbochargers, it provides durability and flexibility, especially in tight spaces.
|
|
 |
|
| |
|
|
|
|
| |
|
|
|
| |

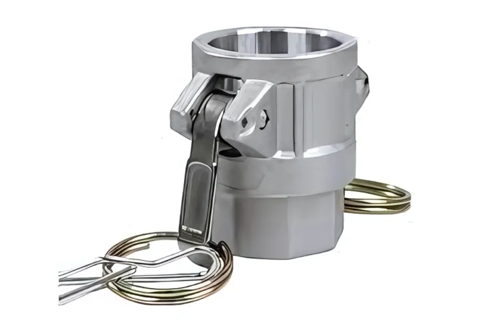

Camlock Fittings
|
Camlock fittings enable quick, tool-free hose and pipe connections using a cam-and-groove system, perfect for fast assembly and disassembly in industrial settings. Available in durable materials like stainless steel, aluminum, and brass, they are designed to ensure a tight, leak-free seal under varying conditions, ideal for fluid and gas transfer applications​.
|
|
 |
|
| |
|
|
|
|
| |
|
|
|
| |
