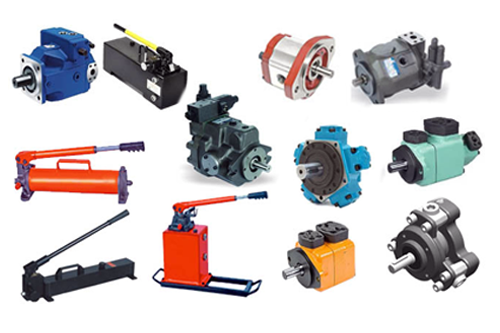

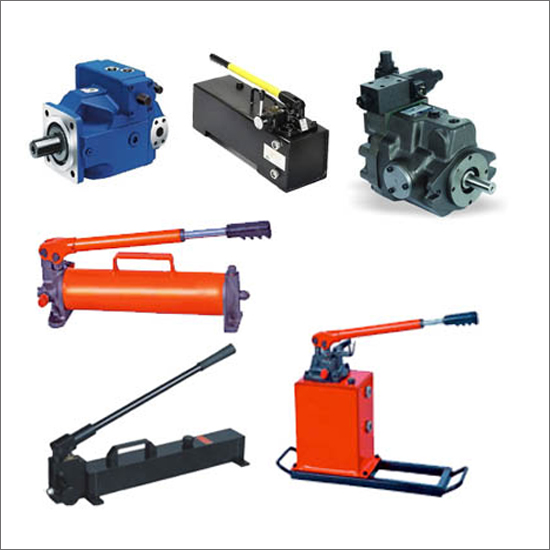

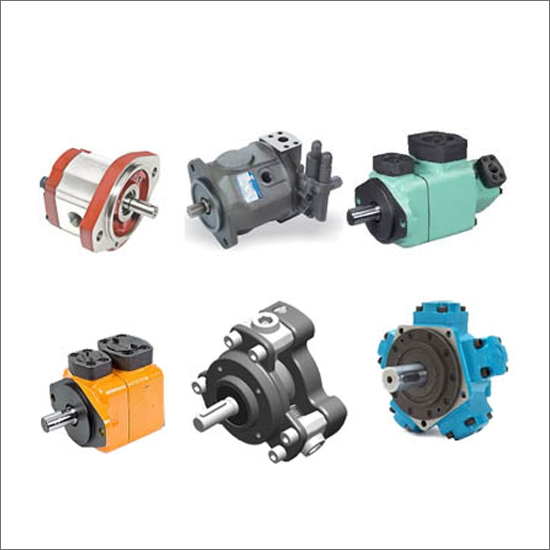

Hydraulics Oil Pumps
Gear Pumps : Gear pumps (with external teeth) (fixed displacement) are simple and economical pumps. These pumps create pressure through the meshing of the gear teeth, which forces fluid around the gears to pressurize the outlet side. These gear pumps are highly reliable and much quieter than older models.
This is in part due to designs incorporating split gears, helical gear teeth and higher precision/quality tooth profiles that mesh and un mesh more smoothly, reducing pressure ripple and related detrimental problems. Another positive attribute of the gear pump, is that catastrophic breakdown is a lot less common than in most other types of hydraulic pumps.
- Group 0P - P3000 series Pump = Data Sheet
- Group 1P - P3000 series Pump = Data Sheet
- Group 2P - P3000 series Pump = Data Sheet
- Tandem Pumps - P3000 series Pump = Data Sheet
-
Hand Pumps
- HAND PUMP HP-10
- HAND PUMP HP-12
- HAND PUMP HP-12_1000 BAR
- HAND PUMP HP-16
- HAND PUMP HP-5010
- HAND PUMP HP-5012
- HAND PUMP HP-5016
- HAND PUMP DOUBLE STROKE - HPD512
- FOOT PUMP
- DOWTY HAND PUMP
Heavy duty construction with harden and ground piston. Renewable suction, delivery. Relief and release valves parts. Integral relief and release valves.

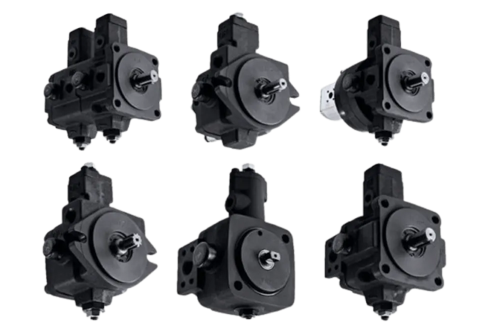

Vane Pumps
Vane pumps are positive displacement pumps that use a rotating vane assembly to create a smooth, continuous flow of fluid. They are crucial in powering machinery across industries like manufacturing and construction, offering reliability and efficiency in hydraulic systems
Rotary vane pumps (fixed and simple adjustable displacement) have higher efficiencies than gear pumps, but are also used for mid pressures up to 180 bars in genre and vane pumps are not regarded as "high pressure" components. Some types of vane pumps can change the centre of the vane body, so that a simple adjustable pump is obtained. These adjustable vane pumps are in general constant pressure or constant power pumps: the displacement is increased until the required pressure or power is reached and subsequently the displacement or swept volume is decreased until equilibrium is reached.
- Variable Displacement Vane Pumps
- Fixed Displacement Vane Pumps

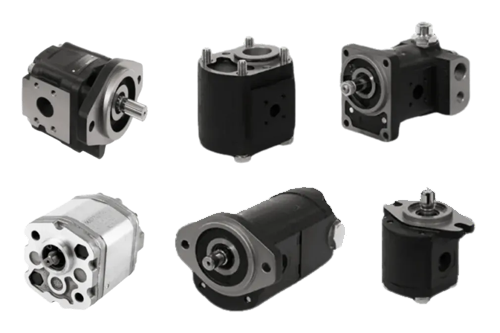

Gear Pumps
A gear pump is a positive displacement pump that uses interlocking gears to move fluid, providing a continuous and reliable flow. It is commonly used in hydraulic systems and various industrial applications.
- HYDRAULIC GEAR PUMP
- CBKHYDRAULIC GEAR PUMP
- INTERNAL GEAR PUMP
- HYDRAULIC HAND PUMP

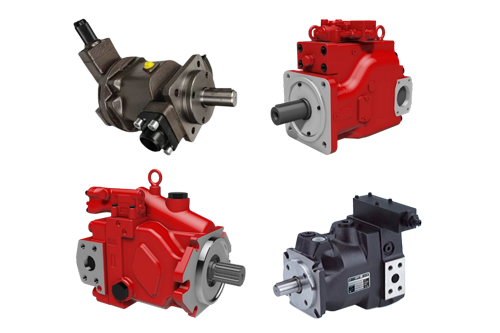

Axial Piston Pump
An axial pump is a type of fluid pump that moves fluid along the axis of the pump, using a rotating impeller to generate flow. It is commonly used in applications requiring high flow rates and low pressure, such as in water and cooling systems.
An axial piston pump has a number of pistons (usually an odd number) arranged in a circular array within a housing which is commonly referred to as a cylinder block, rotor or barrel. This cylinder block is driven to rotate about its axis of symmetry by an integral shaft that is more or less, aligned with the pumping pistons.
- HYDRAULIC AXIAL PISTON PUMPS
- VARIABLE AXIAL PISTON PUMPS

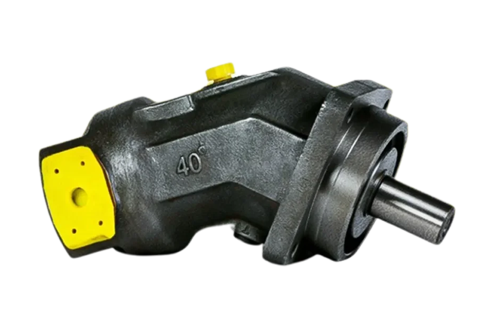

Bent Axis Pumps
FIXED DISPLACEMENT BENT AXIS PISTON PUMP Fixed Displacement Pump A2FO - Axial Piston, Bent Axis
Application: Suitable for hydrostatic drives in open circuits
Design: Axial piston, bent-axis design, offering high efficiency and reliability.
Power/Weight Ratio: Optimized for a favourable power-to-weight ratio, ensuring compact and efficient performance
Flow Characteristics: Output flow is directly proportional to the drive speed and pump displacement, allowing for precise control.
Durability: Drive shaft bearings are designed for extended service life, even under demanding operational conditions.

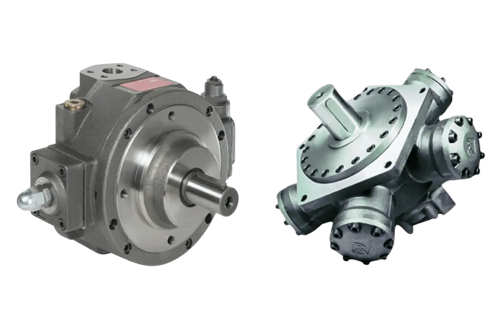

Radial Piston Pumps
Radial piston pumps (fixed displacement) are used especially for high pressure and relatively small flows. Pressures of up to 650 bars are normal.
These are robust and versatile pumps that use radial pistons arranged around a central shaft to generate fluid flow, offering high efficiency and durability for various industrial and mobile hydraulic systems.
These kinds of piston pumps are characterized by the following advantages:
- High efficiency
- High pressure (up to 1000 bar)
- Low flow and pressure ripple (due to the small dead volume in the workspace of the pumping piston)
- Low noise level
- Very high load at lowest speed due to the hydrostatically balanced parts possible
- No axial internal forces at the drive shaft bearing
- High reliability
Applications for a radial piston pump
- Machine tools (e. g. displace of cutting emulsion, supply for hydraulic equipment like cylinders) high pressure units (HPU) (e. g. for overload protection of presses)
- Test rigs
- Automotive sector (e. g. automatic transmission, hydraulic suspension control in upper-class cars)
- Plastic- and powder injection moulding
- Wind energy

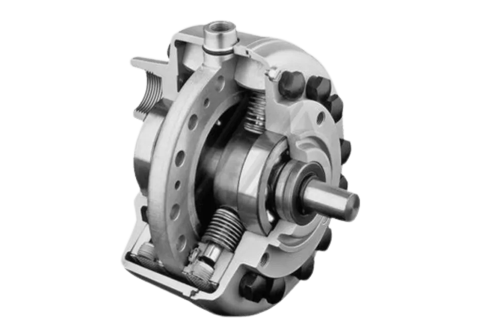

Hydraulic Radial Piston Pumps
A type of pump that uses pistons to move hydraulic fluid, providing high pressure and consistent flow for a range of industrial applications.
Hydraulic Radial Piston Pumps are high-pressure hydraulic pumps designed to deliver reliable and efficient performance in demanding industrial applications. These pumps operate through radially arranged pistons that generate smooth fluid flow with excellent pressure stability and high volumetric efficiency. Known for their robust construction and long service life, radial piston pumps are widely used in hydraulic power packs, machine tools, presses, marine systems, construction equipment, and heavy industrial machinery.
These pumps are capable of handling high operating pressures while maintaining low noise and energy-efficient performance. Their compact design, precise flow control, and superior durability make them suitable for continuous-duty operations. Hydraulic Radial Piston Pumps are available in various capacities and configurations to meet the requirements of lubrication systems, automation equipment, steel plants, plastic machinery, and mobile hydraulic applications.

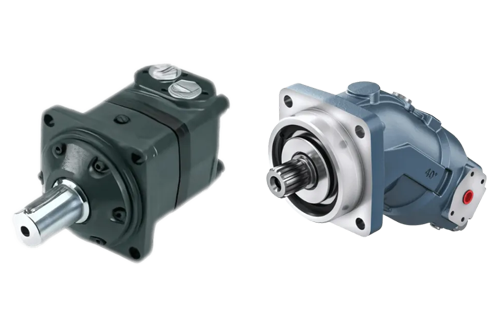

Hydraulic Motors
Hydraulic Motors are high-performance mechanical actuators designed to convert hydraulic pressure and fluid flow into rotational motion and torque. These motors are widely used in industrial, mobile, and marine applications where reliable power transmission and smooth operation are required. Built for heavy-duty performance, hydraulic motors provide high torque at low speeds with excellent efficiency and durability.
Hydraulic Motors are commonly used in construction machinery, agricultural equipment, conveyors, winches, injection molding machines, and hydraulic drive systems. Available in various designs such as gear motors, vane motors, piston motors, and orbital motors, they are suitable for different pressure and speed requirements. Their compact construction, easy installation, low maintenance, and consistent performance make them ideal for continuous industrial operations in demanding working conditions.
- O-SERIES HYDRAULIC MOTORS
- BENT AXIS MOTORS
